Overview

For customers that do not have their own on-prem servers and are looking for a turn-key solution, the Xyte Secure Edge is a pre-installed and pre-configured Edge solution that can be purchased globally directly from Xyte.

Enterprise deployment at scale

Ships fully configured with Xyte Connect Edge pre-installed
Monitor and manage legacy devices alongside your cloud-connected devices from one interface
Extend cloud visibility to devices on local networks
Reduce onsite work and accelerate time-to-value
No need for expertise in hardware support
Supports up to 500 monitored devices per Secure Edge

Secure & reliable by design

Local data processing reduces cloud dependency and exposure
Hardened, always-on Edge appliance built for unattended operation

Why use this product

Customers without available server infrastructure
Organizations that want Edge without IT overhead
MSPs and integrators deploying Edge at scale
Distributed environments where simplicity and speed matter

Bulk Pricing Available - Special pricing is available for volume deployments. Contact Xyte to learn more.

Technical Specifications

Secure Edge models

Two Secure Edge hardware models are in use; check which one you have by its ports. Each network port is its own NIC with its own MAC address.

Basic setup: connect one network port (NIC 1) to a network that reaches both your devices and the internet (eu1.edge.xyte.io, port 443). The Edge gets its IP address by DHCP.
More networks: the other network ports can face separate device networks (Connected VLANs, Separate VLANs, DMZ). NIC 1 stays the internet-facing port. See Networking.

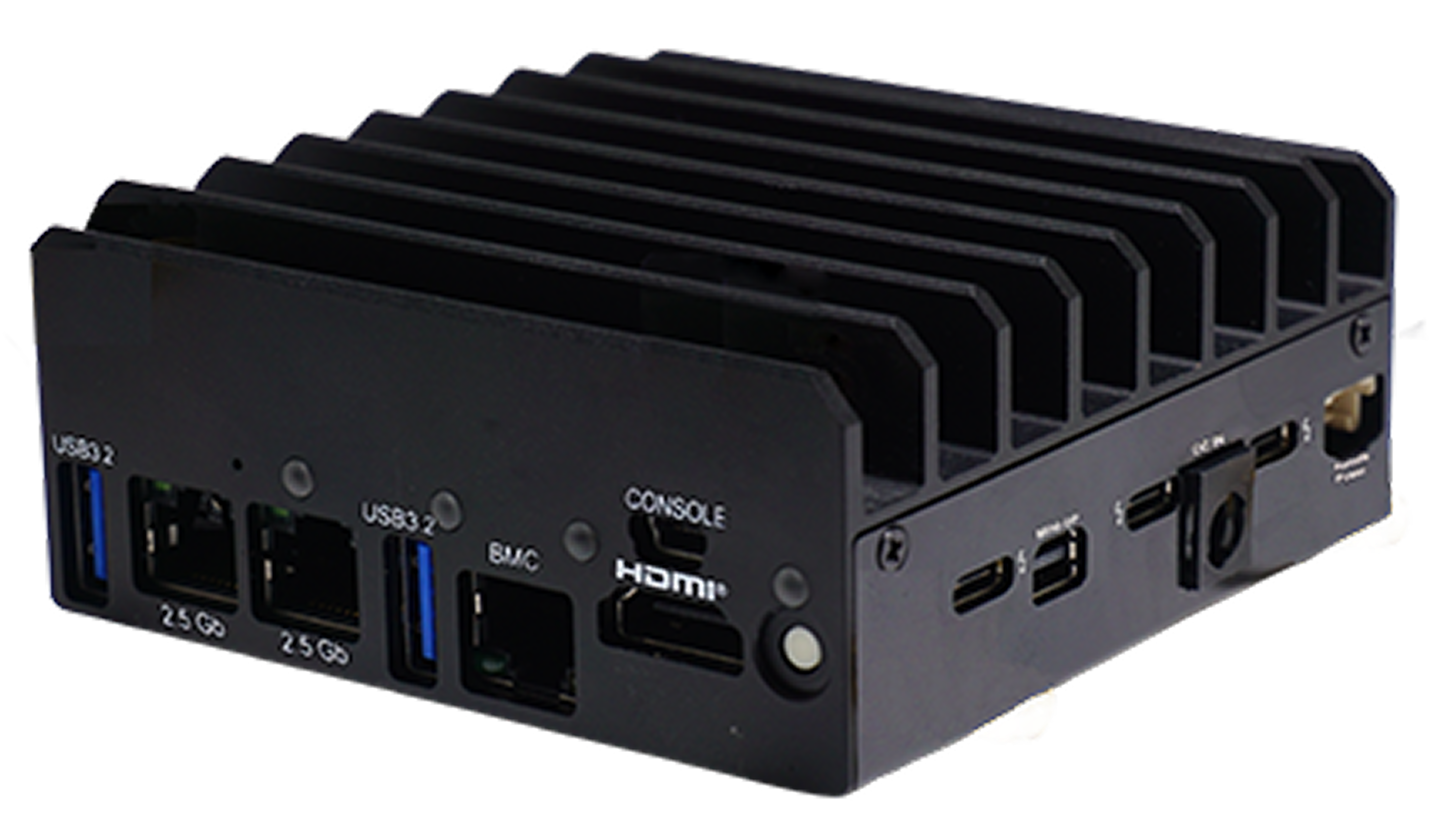

2.5 GbE model: 2x 2.5 GbE network ports, plus a BMC port used only for Xyte remote support.

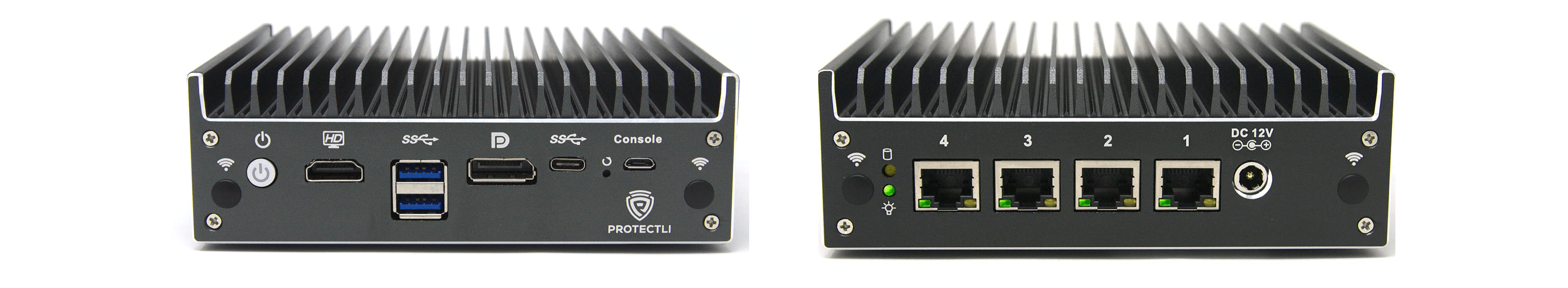

Protectli VP2410 model: 4x 1 GbE network ports.

The specifications below are for the Protectli VP2410 model.

Appliance Model

Protectli Vault Pro
Model: VP2410

Hardware

Processor: Intel® Celeron® J4125 (64 Bit, 2.0 GHz Base, 2.7 GHz Burst, 4M Smart Cache)
Memory: 1x SO-DIMM DDR4-2400, Max 16G
Onboard Storage: 1x M.2 SATA, 1x 8G eMMC on board
Optional Additional Storage: 1x Internal 2.5” SATA 3.0 SSD
Form Factor: Fanless, alumninum, gray
Mounting Options: Desktop, VESA Bracket, Optional 1RU Rack Mount

Networking

4x Intel® 1G Ethernet, RJ-45 (additional NIC options available)

Power

Input 12V DC, 1x DC Power Jack
Power Usage: Max 24W

External I/O

4x RJ-45 Ethernet ports
1x 12V DC Power Jack

Super I/O Chip

IT8613E

Installation

Visit the Installation guide for more details.
